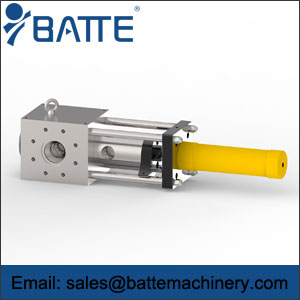

Single pillar hydraulic screen changer

Single pillar hydraulic screen changer also be called slide piston hydraulic screen changer ,This type screen changers for extruder compatible with various extrusion production for most polymers at high pressure, temperature and production throughput.





Single-pillar Hydraulic Screen Changer Characteristics:



1. Slide column screen changer is designed with elliptical bore which doubles the filtering quantity, and ensuring high output.

2. Equipped with extremely precise electrical ruler controlling system, it enjoys very smooth and quick changing motion. Hydraulic controlling system ensure secure operation.

3. Thescreen changer for recycling processes works well even under the high temperature of 300°C and high pressure of 25Mpa-50Mpa.

4. It suits for high pressure product manfacturer,especially for blown film,cast film,drawbench,pelleting ect.

Technical specifications:

Type	Output Kg/h	Size (mm)				Screen size		Heating tube
		L1	L2	L3	L4	Ф(mm)	cm2	Quantity	V	KW
ZB-SP-R-100	50~150	100	700	180	180	Ф80	50	4	230/400	0.5/0.8
ZB-SP-R-120	100~260	110	730	210	210	Ф100	78	4	230/400	0.6/1.0
ZB-SP-R-145	200~380	125	800	240	240	Ф125	123	4	230/400	0.7/1.2
ZB-SP-R-170	290~600	135	860	260	260	Ф150	177	4	230/400	1.0/1.6
ZB-SP-R-195	400~820	150	960	300	300	Ф175	240	4	230/400	1.6/2.0
ZB-SP-R-220	600~1300	160	1150	330	330	Ф200	314	8	230/400	1.0/1.4
ZB-SP-R-250	800~2000	180	1250	380	380	Ф230	415	8	230/400	1.6/2.0

Type	Output Kg/h	Size (mm)				Screen size		Heating tube
		L1	L2	L3	L4	(mm)L×W	cm2	Quantity	V	KW
ZB-SP-E-120	180~450	130	870	210	210	100×145	124	4	230/400	0.8/1.2
ZB-SP-E-145	280~600	145	900	240	240	125×170	179	4	230/400	0.9/1.5
ZB-SP-E-170	600~1300	185	1100	260	260	150×230	296	4	230/400	1.6/2.2
ZB-SP-E-195	790~2500	200	1200	300	300	175×270	406	4	230/400	2.3/3.0
ZB-SP-E-220	990~3500	215	1300	330	330	200×300	514	8	230/400	2.0/2.5
ZB-SP-E-270	1570~4600	220	1350	380	380	230×310	600	8	230/400	2.0/2.5
ZB-SP-E-270	1950~6000	240	1450	410	410	250×345	737	8	230/400	2.5/3.0



The slide piston hydraulic screen changer can guarantee a continuous and stable extrusion production. The screen changer has the largest possible filter area available, facilitating the effective removal of contamination.
