Double plate double working station screen changers
Double plate double working station screen changers also be called double plate hydraulic screen changers.This series hydraulic screen changers designed for double channel double filter screen structure in screen changer for recycling processes, one screen is replaced,the other one is non-stop material flow.

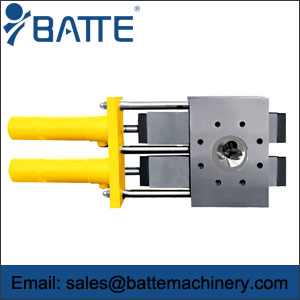

Double Plate Double Working Station Screen Changer

Double Plate Double Working Station Screen Changer Features:

1.Double plate type double working station screen changer for dual network applications at the same time.
2.Changing the net a net work, replacement of a network without interrupting the material flow, can achieve non-stop screen changing.
3.Two filter units work simultaneously, the filter area is two times of the single net.
4.Extrusion production requirements for all polymers.
5.The process of changing the screen is continuous, and the stability of the product quality is improved.
6.Hydraulic screen changer extruder can withstand higher melt pressure. The reliable sealing structure improves the sealing effect.

Technical data:
Type
Output
Kg/h
Size (mm)
Screen size
Heating tube
L1
L2
L3
L4
Ф(mm)
cm2
Quantity
V
KW
ZB-DSP-80
110~300
140
775
220
330
Ф80
50×2
6
230/400
1.2/1.7
ZB-DSP-100
180~500
170
895
250
400
Ф100
78×2
6
230/400
1.6/2.0
ZB-DSP-120
350~800
200
1005
310
470
Ф120
113×2
6
230/400
2.0/2.4
ZB-DSP-150
450~1200
245
1170
350
560
Ф150
176×2
6
230/400
2.4/3.0
ZB-DSP-180
500~1500
290
1335
440
600
Ф180
254×2
6
230/400
4.0/4.8
ZB-DSP-200
800~2500
320
1455
450
670
Ф200
314×2
8
230/400
4.5/5.3
ZB-DSP-250
1100~3700
395
1760
490
760
Ф250
490×2
8
230/400
5.0/6.0


Double Plate Double Working Station Screen Changer Applications:

Double plate type double working station screen changer for automatic compensation seal clearance, high pressure, high temperature, no leakage, filter area, high output equipment. When the net is not down, can increase the output, save energy consumption. Easy to change screen, easy operation and maintenance. Widely used in granulation, pipe extrusion line, plate, sheet, cast film, etc.
